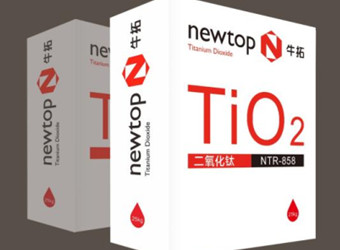

NTR-858
金红石型钛白粉：NTR-858 Rutile Titanium Dioxide NTR-858
推荐适用范围 Application scope recommended
建筑涂料；工业漆；防腐漆；油墨；造纸等领域
Building Coating; industrial paint; anticorrosive paint; printing ink; plastics; papermaking, etc.
产品基本特性 Basic Features
标准分类（ISO591-1）Standard Classification(ISO591-1)┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈R2
表面处理 Surface preparation┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈氧化铝、氧化硅和特殊的有机物包覆处理 Alumina,Silica and special organic substance coating
TiO2含量 TiO2 content┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈≥92%
金红石型含量（转换率）RutileContent(conversion rate)┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈ ≥ 98.0%
密度Density┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈4.1-4.3g/cm3
堆积密度 Bulk density┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈0.8-1.0g/cm 3
产品性能特点 Products performance and Characteristics
本产品为采用硫酸法工艺进行组织生产的通用型金红石型钛白粉产品。该产品采取氧化硅、氧化铝无机表面致密包膜并经过特 殊的有机表面处理后，其产品的性能特点极具良好的耐候性和遮盖力及抗粉化、耐黄变等多功能的应用性能，产品在油性和水 性体系产品中通用。
NTR-858 is a general-purpose grade Rutile Titanium Dioxide product which is manufactured by the sulfate process. The surface of titanium dioxide is coated with inorganic silica and alumina hydrated oxide film. It is specifically formulated to provide to prove outstanding weatherability, high power, chalk resistance and resistance to yellowing and other multi-functional application performance. The product can be used both in oil-base and water-base system.
| 项目 Item | Specification |
| TIO2 含量 TiO2content% ≥ | 92 |
| 金红石含量（转换率）Rutile Content(conversion rate)%≥ | 98 |
| 105℃挥发物 Volatilematterat105℃%≤ | 0.5 |
| 325 目筛余物 Residue on sieve325mesh % ≤ | 0.01 |
| 水悬浮物 PH 值 Water suspension H value | 6.5-8.0 |
| 吸油量 Oil absorption g/100g ≤ | 22 |
| 电阻率 Resistivity Ωcm ≥ | 5000 |
| 亮度（白浆 L 值）Brightness (white wash L value) ≥ | 95.0 |
| 分散性（黑格曼系数）Dispersibility(Hickmann number)≥ | 5.0 |
| 消色力（TCS/雷诺系数）Lightening Power(TCS/Reynolds number)≥ | 1850 |
产品包装规格 Package
纸塑复合阀口袋：25KG包；塑编袋：500KGS/包或1000KGS/包
Paper and plastic valve bag: 25kgs/bag；Plastic woven bag:500KGS/bag or 1000KGS/bag
其他说明 Remark
产品的详细技术资料，敬请向供方联系索取；产品的质量指标以供方提供的检测报告为准。
For detail specifications, please contact your suppliers. Products quality performance is subject to supplier’s test report.
Specification
| Clause/Item | UNIT | NTR-858 | |
| Surface preparation | Alumina,Silica and special organic substance coating | ||
| TiO2 content | %≥ | 92 | |
| Rutile Content(conversion rate) | %≥ | 98 | |
| Volatilematterat 105℃ | %≤ | 0.5 | |
| Residue on sieve 325 mesh | %≤ | 0.01 | |
| Water suspension PH value | 6.5-8.0 | ||
| Oil absorption | g/100g≤ | 22 | |
| Resistivity | Ωcm≥ | 5000 | |
| Brightness (white wash L value) | ≥ | 95 | |
| Dispersibility(Hickmann number) | ≥ | 5.0 | |
| Density | g/cm3 | 4.1-4.3 | |
| Bulk density | g/cm3 | 0.8-1.0 | |
| Lightening Power(TCS/Reynolds number) | ≥ | 1850 | |
Application
Building coating, industrial paint, anticorrosive, paint, printing ink, plastics, papermaking, etc.
